Pressure Gauges Used with Valve Sandwich Regulators

Product Overview

The Automatic Valve Pressure Gauges are visual pressure monitoring instruments designed for use in conjunction with the Automatic Valve Sandwich Pressure Regulators. When a sandwich regulator is installed between a directional control valve and its sub-base or manifold to provide independent pressure regulation at a single valve station, a local pressure gauge allows the technician to visually confirm the set point and monitor system pressure without requiring a separate test port or instrumentation manifold.

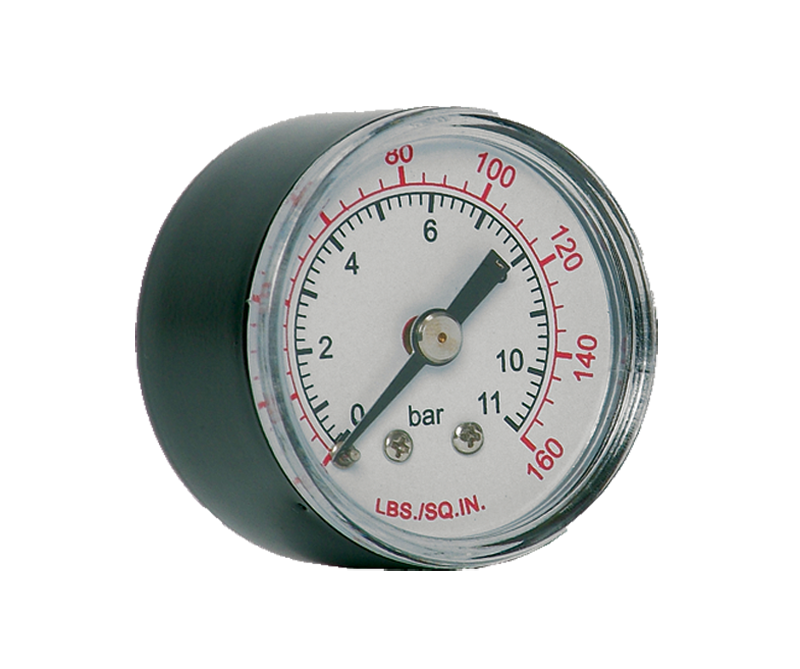

Model A5655-160 is the pressure gauge offered for this series, featuring a dual-scale face displaying pressure in both PSI (pounds per square inch) and bar, covering the range of 0 to 160 PSI, which encompasses the typical working pressure range of industrial pneumatic directional control valve systems. The dual-scale format eliminates the need for manual unit conversion during commissioning and troubleshooting in plants that operate with mixed metric and imperial measurement standards.

The gauge mounts directly to the sandwich regulator assembly or a ported connection in the regulated circuit, providing an integral visual indicator for the regulated pressure at that specific valve station. This is particularly valuable in multi-station manifold systems where different actuator circuits require different regulated pressures, and the operator or maintenance technician needs to quickly read and confirm each station's set pressure without a pressure gauge panel or remote instrumentation.

For OEM machine builders who specify the sandwich regulators as part of their actuator speed and force control architecture, pairing each regulator with an A5655-160 pressure gauge provides the end user with a straightforward visual reference for field verification and adjustment of regulated pressure at each station.

Key Engineering Features

• Designed for Sandwich Regulator Integration - The Series gauge is specified for use with Automatic Valve sandwich pressure regulators, providing a matched visual monitoring solution for the regulated pressure at individual valve stations.
• Dual PSI and Bar Scale - The A5655-160 gauge face displays pressure in both PSI and bar simultaneously, eliminating unit conversion in facilities using mixed imperial and metric measurement standards.
• 0 to 160 PSI Range - The full-scale range of 0 to 160 PSI covers the standard operating pressure range of industrial pneumatic directional control valve and actuator systems.
• Direct-Mounted Visual Indicator - Mounts directly to the sandwich regulator or a ported connection in the regulated circuit, providing a dedicated local pressure readout without requiring separate instrumentation.
• Commissioning and Troubleshooting Support - A local gauge allows field personnel to quickly confirm regulator set pressure during initial commissioning and to diagnose pressure-related issues without connecting external test gauges or instrumentation.
• Clear Dial Readability - The gauge dial is designed for clear field reading with legible scale graduations for both PSI and bar at typical industrial viewing distances.

Technical Specifications

General Specifications

Certifications & Compliance

Typical Applications & Industries

Industrial Automation and Machine Building

• Multi-station valve manifolds where each station has an independent sandwich regulator for individual actuator pressure control, with an A5655-160 gauge at each station for visual set point verification.
• Press and forming machine pneumatic circuits where cylinder force is controlled by regulated supply pressure and a local gauge confirms the correct pressure setting for each tooling die or forming stage.
• Assembly fixture pneumatic clamping circuits where regulated pressure controls clamping force and the local gauge confirms that the set pressure is within the specification for the assembled component.

Packaging Equipment

• Packaging machine actuators requiring independent pressure regulation for consistent seal quality, bag forming tension, or product handling force, with a local gauge at each regulated station for operator confirmation.
• Labeling and marking equipment where regulated pressure controls label applicator pad force and a local gauge confirms the set pressure is correct for each label stock type.
• Filling and dosing machines where regulated pressure controls product transfer force and a local gauge provides a quick-check indicator for line changeover verification.

Food and Beverage Processing

• Food processing pneumatic actuator circuits with sandwich regulators controlling gripper and handling forces for fragile food products, with gauges providing a visual confirmation of set pressure during product changeovers.
• Bottle filling lines where cylinder extension force is set by a sandwich regulator and confirmed by a local gauge to protect glass containers from excessive gripping pressure.

Automotive Assembly

• Assembly line pneumatic clamping fixtures with individual pressure regulation per fixture station and local gauges that enable line-side operators to confirm correct clamping pressure without tools.
• End-of-line test stations where actuator force is precisely regulated and a local gauge provides a quick pass/fail reference for the maintenance team verifying test fixture air pressure before each shift.

Process Control and Oil and Gas

• Pneumatic actuator control panels with sandwich regulators and local gauges providing visual pressure indication at the actuator supply port for valve commissioning and maintenance checks.
• Instrument air distribution systems where local gauges on individual regulator stations enable maintenance personnel to quickly identify stations with out-of-range pressure without carrying a separate test gauge.

Maintenance, Repair, and Calibration

• Plant maintenance programs where local pressure gauges on sandwich regulators allow maintenance technicians to verify and re-set regulator pressure during scheduled PM inspections without external test equipment.
• Machine commissioning and acceptance testing where local gauges confirm that each independently regulated station is set to the design pressure prior to production startup.

Ordering and Model Number Configuration

Order one A5655-160 pressure gauge per sandwich regulator station requiring visual pressure monitoring.

The A5655-160 gauge is designed for use with Automatic Valve Pressure Regulators. Verify compatibility with the specific regulator connection port before ordering.

Contact Automatic Valve at (248) 474-6761 for application assistance or to confirm gauge-regulator assembly compatibility.

Pressure Gauge Model Selection

Related Products & Accessories

• Pressure Regulator (Sandwich Regulator - SAE Series) -  single and double valve sandwich regulators for SAE pattern directional control valves, designed to work in conjunction with the series pressure gauges. https://www.automaticvalve.com/series/2892-pressure-regulator
• Manifolds (Valve Manifolds) -  multi-station sub-base manifolds for installing valve banks with independent sandwich regulator stations. https://www.automaticvalve.com/series/227-manifolds
• Blocking Disks (Port Isolation) -  blocking disks for sealing unused manifold station ports. https://www.automaticvalve.com/series/2604-blocking-disks
• Directional Control Valves - Automatic Valve solenoid-operated directional control valves for sub-base and manifold mounting, compatible with sandwich regulator stacking. https://www.automaticvalve.com/categories

Frequently Asked Questions (FAQ)

Q: What regulator is the series gauge designed to work with?

A: The Series pressure gauges are designed for use with the Automatic Valve Single and Double Valve Sandwich Pressure Regulators. The gauge connects to the regulated outlet port of the sandwich regulator to display the regulated pressure at that valve station.

Q: What pressure range does the A5655-160 gauge cover?

A: The A5655-160 gauge has a full-scale range of 0 to 160 PSI, with a corresponding bar scale. This range covers standard industrial compressed air operating pressures from low-pressure pilot circuits up to the maximum working pressure of most pneumatic valve and actuator systems.

Q: Does the gauge display both PSI and bar simultaneously?

A: Yes. The A5655-160 gauge face includes dual scales showing PSI and bar simultaneously, allowing personnel using either unit system to read the pressure directly without conversion.

Q: Is the gauge a direct-reading instrument or does it require power?

A: The A5655-160 is a mechanical Bourdon tube or diaphragm-type pressure gauge that operates without electrical power. It provides a direct visual reading of the pneumatic pressure at the gauge connection port.

Q: How does the pressure gauge connect to the sandwich regulator?

A: The gauge threads into a ported connection on the sandwich regulator. Verify the gauge connection thread size matches the regulator port specification. Contact Automatic Valve at (248) 474-6761 for connection details.

Q: Can the gauge be used to set the regulator pressure?

A: Yes. The gauge provides the visual feedback required to set and verify the regulator pressure. Adjust the regulator set screw while observing the gauge to achieve the target pressure reading.

Q: How accurate is the A5655-160 gauge?

A: Refer to the product technical datasheet for gauge accuracy specification. Industrial-grade process gauges typically have an accuracy of plus or minus 2 to 3 percent of full scale. Contact Automatic Valve at (248) 474-6761 for the specific accuracy class of the A5655-160.

Q: Is the gauge replaceable if damaged in the field?

A: Yes. The A5655-160 gauge is a separate item from the sandwich regulator and can be replaced independently if the gauge is damaged, contaminated, or fails calibration without replacing the regulator.

Q: Is the gauge suitable for outdoor installation?

A: Refer to the product datasheet for the gauge's environmental protection rating. If outdoor installation is required, verify the gauge case and lens construction provides adequate protection against moisture ingress and UV exposure for the specific outdoor environment.

Q: What if I need a different pressure range?

A: The Series currently offers the A5655-160 model with a 0 to 160 PSI range. For applications requiring a different range or special specifications, contact Automatic Valve at (248) 474-6761 to discuss options.

Q: How do I order the A5655-160 gauge?

A: The A5655-160 gauge can be ordered directly through the Automatic Valve website at automaticvalve.com/series/2891-pressure-gauges at a price of $53.00, or through your authorized Automatic Valve distributor. Contact Automatic Valve at (248) 474-6761 for quantity pricing or distributor referral.

Q: Does the gauge require calibration on a schedule?

A: Industrial pressure gauges are generally replaced rather than recalibrated when accuracy is in question. If the gauge is used in a regulated measurement or documentation program, follow your facility's calibration schedule. For general visual indication duty, inspect the gauge face annually and replace if the pointer shows erratic behavior or the gauge face is damaged.

Installation & Maintenance Guidelines

• Depressurize and lockout/tagout the pneumatic system before installing or replacing the pressure gauge on the sandwich regulator.
• Verify that the gauge connection thread matches the regulator port specification before installation. Use appropriate thread sealant or PTFE tape on the gauge threads.
• Apply thread sealant to the gauge threads, avoiding the first thread to prevent sealant from entering the pressure port.
• Thread the gauge into the regulator port by hand to verify engagement, then tighten with a wrench. Do not over-tighten, as this can damage the gauge case or regulator port.
• Orient the gauge face for maximum readability from the primary operator or maintenance access direction.
• Restore system pressure and verify the gauge reads within the expected pressure range for the regulator set point. A zero reading with pressure applied indicates a blocked connection or failed gauge.
• Protect the gauge from direct mechanical impact and high-vibration installation locations. Install a glycerine-filled gauge or pulsation dampener if the gauge will be subject to pressure pulsations that cause needle flutter.
• Inspect the gauge face and needle annually for readability and correct zero indication with system pressure isolated.

Warranty & Global Support

Automatic Valve products are backed by a one-year warranty covering defects in material and workmanship from the date of purchase.

Technical support is available through Automatic Valve at (248) 474-6761 or through the contact form at automaticvalve.com.

Automatic Valve is a member of the ROSS Controls global family, with support resources available through ROSS Global offices worldwide.

For replacement gauges, compatible sandwich regulators, and valve accessories, visit automaticvalve.com or contact your authorized Automatic Valve distributor.

Download Catalog: https://www.automaticvalve.com/documents/422/Accessories.pdf
