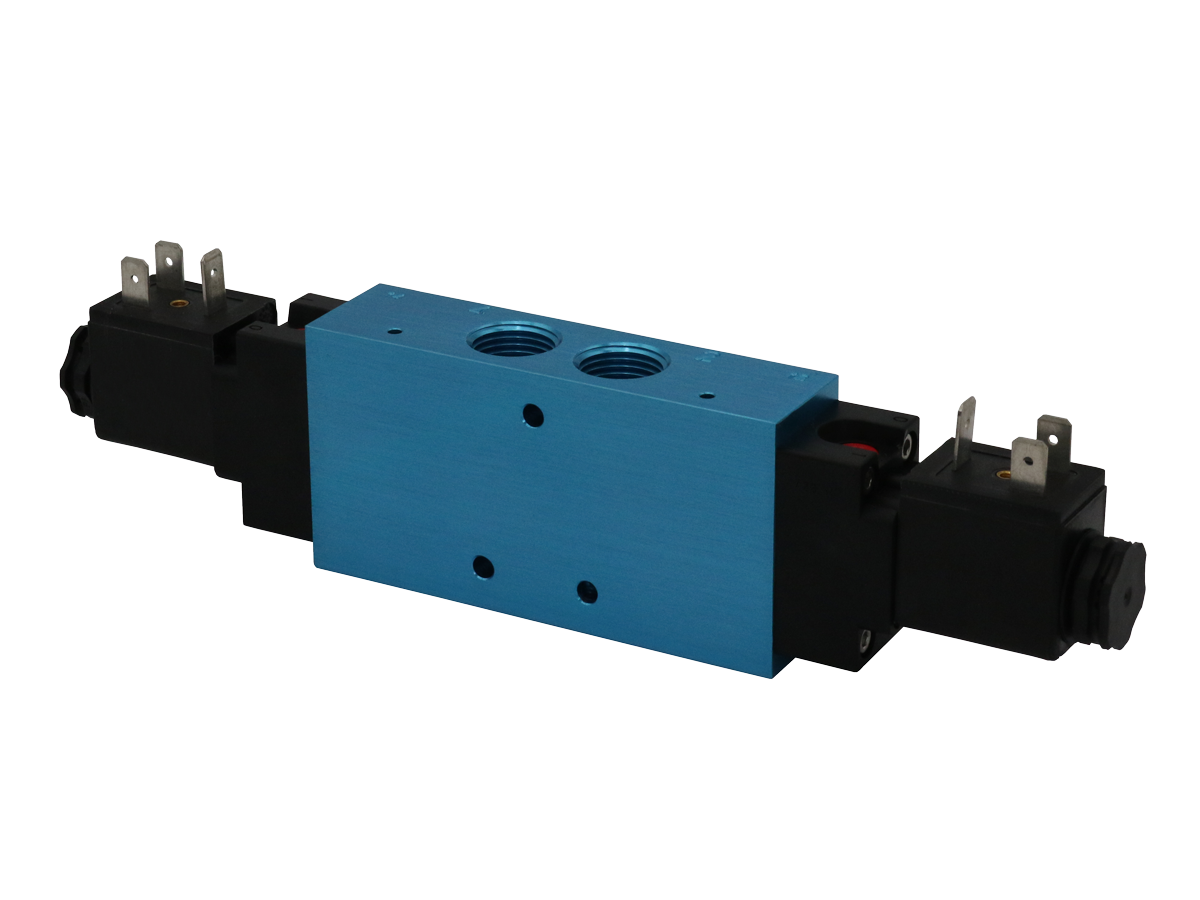

Compact Solenoid L Series Valves - High Temperature Applications L2004HAWR-DACTDW
- Compact Design - Balanced spool construction
- Solenoid Pilot - Pilot uses full air line pressure to shift the valve, Solenoid guaranteed against burnout
- Weather-Proof Coils - Hermetically sealed as an integral water tight molded unit; robust enclosures to function in rugged environments
- Tapered Tee-Seal - Bidirectional tapered Tee-Seal eliminates sticking problems
- Tested Tough - proven reliable according to SAE specifications: rust & water injected every 864,000 cycles for 20-million cycle
- Manual Override - Allows the solenoid valve to be used manually in case of electrical failure, or for quick cycle testing
- External Pilot Supply - Easily field convertible to external pilot supply
Product Information
| Application | High Temperature |
| Valve Type | Directional Control |
| Actuation | Electrical |
| Series | L20 |
| Valve Function | 3/2-Way, Single Solenoid |
| Default Position | Normally Open |
| Voltage | 12 V DC |
| Port Size | 3/8" |
| Port Thread | G |
| Return | Spring |
| Construction | Spool |
| Mounting | Inline |
| Power Consumption | 4.5 watts |
| Duty Rating | Continuous Duty |
| Pilot Supply | Internal |
| Dustproof | Included |
| Manual Override | Push Non-Locking |
| Connection Type | 1/2" Conduit coil with 30" leads |
| Ambient Temperature | 0 to 180 F (-18 to 82 C) |
| Media Temperature | 0 to 180 F (-18 to 82 C) |
| Flow Media | Filtered air |
| Body Material | Aluminum |
| Seal Material | Buna-N |
| Spool Material | Aluminum |
+
Compact Solenoid L Series Valves - High Temperature Applications
L2004HAWR-DACTDW
Contact Us for a 3D Model
+
Compact Solenoid L Series Valves - High Temperature Applications
L2004HAWR-DACTDW
Contact Automatic Valve for Ordering Information
+
