ISO 5599-1 Valves I1500AAXR
- Wide variety of options and operators available
- Conforms to ISO 5599/1specifications for size 1, 2 and 3
- SIL Certified
- Additional models available, please view downloadable literature

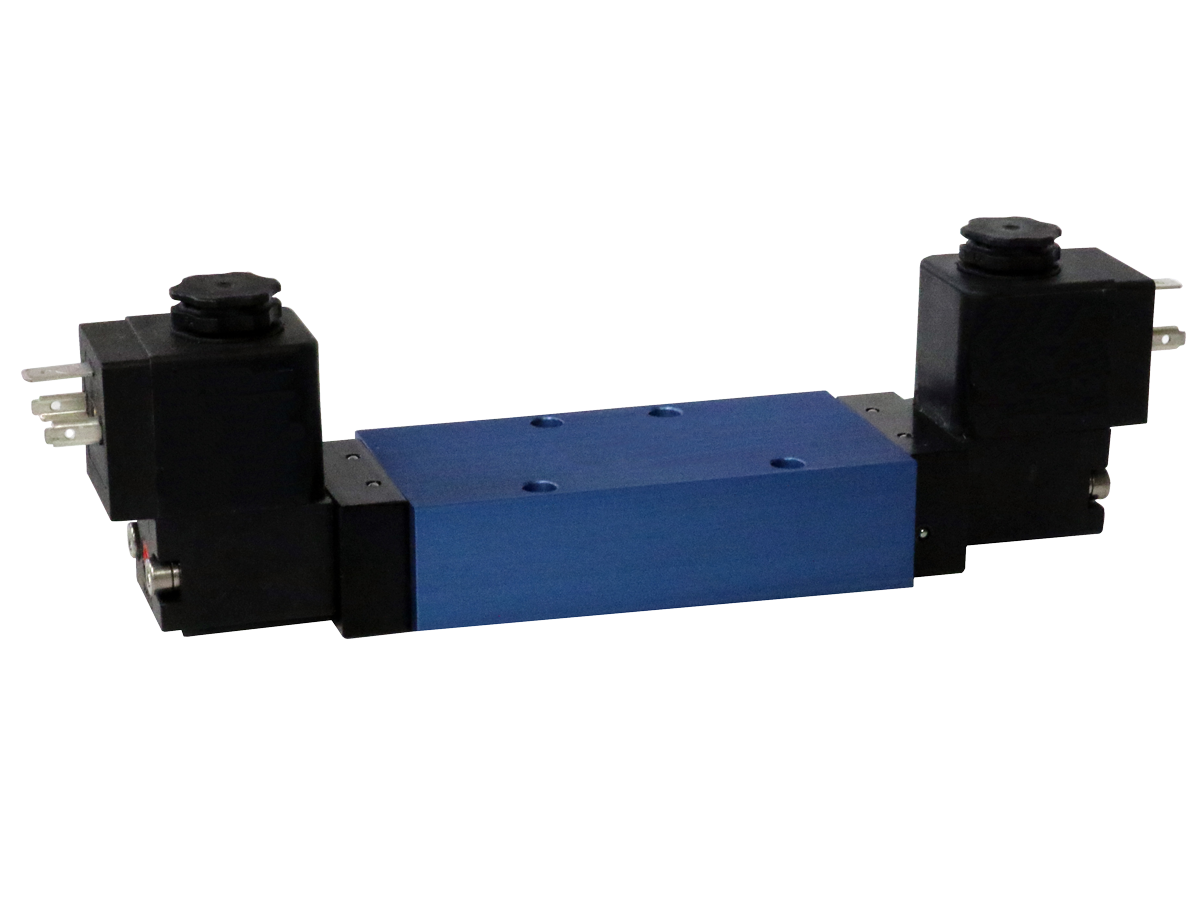

Please note that your product selection may differ from the product image shown for reference.
I1500AAXR
$123.00
Quantity
Estimated Ship Date: 10/18/2024
*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.
Product Information
| Valve Series | I15 |
| Body Type | Base Mount |
| ISO Size | 1 |
| Return Type | Spring Return |
| Construction | Spool |
| Flow | 1.5 Cv (1480 l/min) |
| Valve Body Material | Aluminum |
| Seal Material | Buna-N |
| Actuation | Electrical |
| Manual Override | Push Non-Locking |
| Ambient Temperature | -18 to 50 C (0 to 123 F) |
| Media Temperature | -18 to 50 C (0 to 123 F) |
| Operating Pressure | 35 to 150 psig (2.4 to 10.3 bar) |
| Application | Standard |
| Valve Function | Single 5/2 Normally Closed |
+
ISO 5599-1 Valves
I1500AAXR
Contact Us for a 3D Model
+
ISO 5599-1 Valves
I1500AAXR
Contact Automatic Valve for Ordering Information
+
