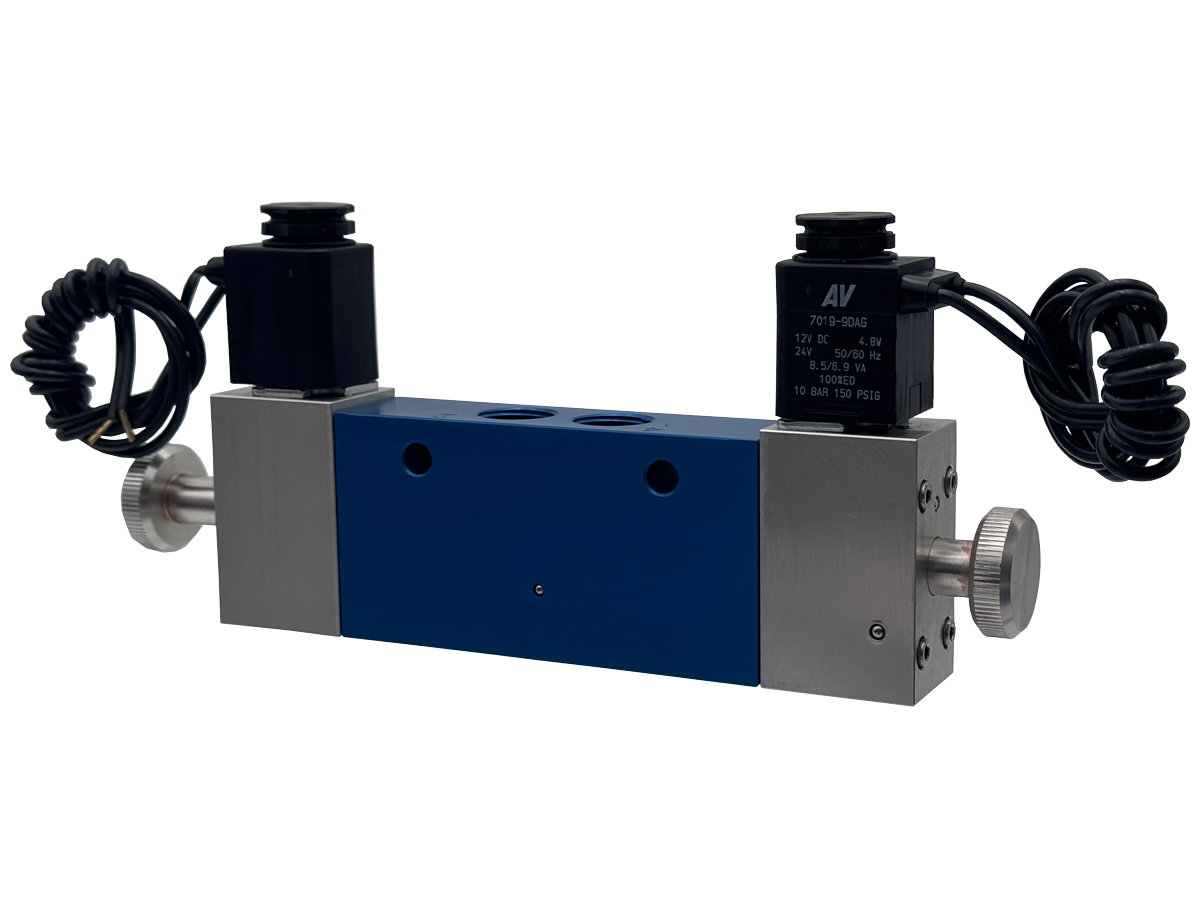

H20 5/2 Double Solenoid Valves - Push-Turn-Lock Manual Override H2003ABXX-DADGP1
- Balanced spool construction
- Compact size
- Low profile
- High performance
Product Information
| Actuation | Electrical |
| Function | 5/2 Double Solenoid |
| Manual Override | Push-Turn-Lock |
| Default Position | Normally Closed |
| Construction Design | Balanced Spool |
| Mounting | Inline |
| Port Sizes | 1/4 |
| Port Thread | NPT |
| Voltage | 12 V DC |
| Coil Type | Molded coil with 18 |
| Pilot Supply | Internal |
| Ambient Temperature | -40° to 180°F (-40° to 82°C) |
| Media Temperature | -40° to 180°F (-40° to 82°C) |
| Media Temperature Caution | For temperatures below 32°F (0°C) air must be free of water vapor to prevent formation of ice. |
| Flow Media | Filtered Air |
| Valve Body Material | Anodized Bar Stock Aluminum |
| Valve Spool Material | Aluminum, Hardcoat/PTFE Anodized |
| Seal Material | Nitrile Rubber, Buna-N |
| Flow | 1.8 Cv (1800 Nl/min) |
| Operating Pressure | 0 to 150 psig (0 to 10.3 bar) |
| Weight | 0.78 lb (0.354 kg) |
| Port Protector | Included |
| Dual Pressure | Included |
+
H20 5/2 Double Solenoid Valves - Push-Turn-Lock Manual Override
H2003ABXX-DADGP1
Contact Us for a 3D Model
+
H20 5/2 Double Solenoid Valves - Push-Turn-Lock Manual Override
H2003ABXX-DADGP1
Contact Automatic Valve for Ordering Information
+
