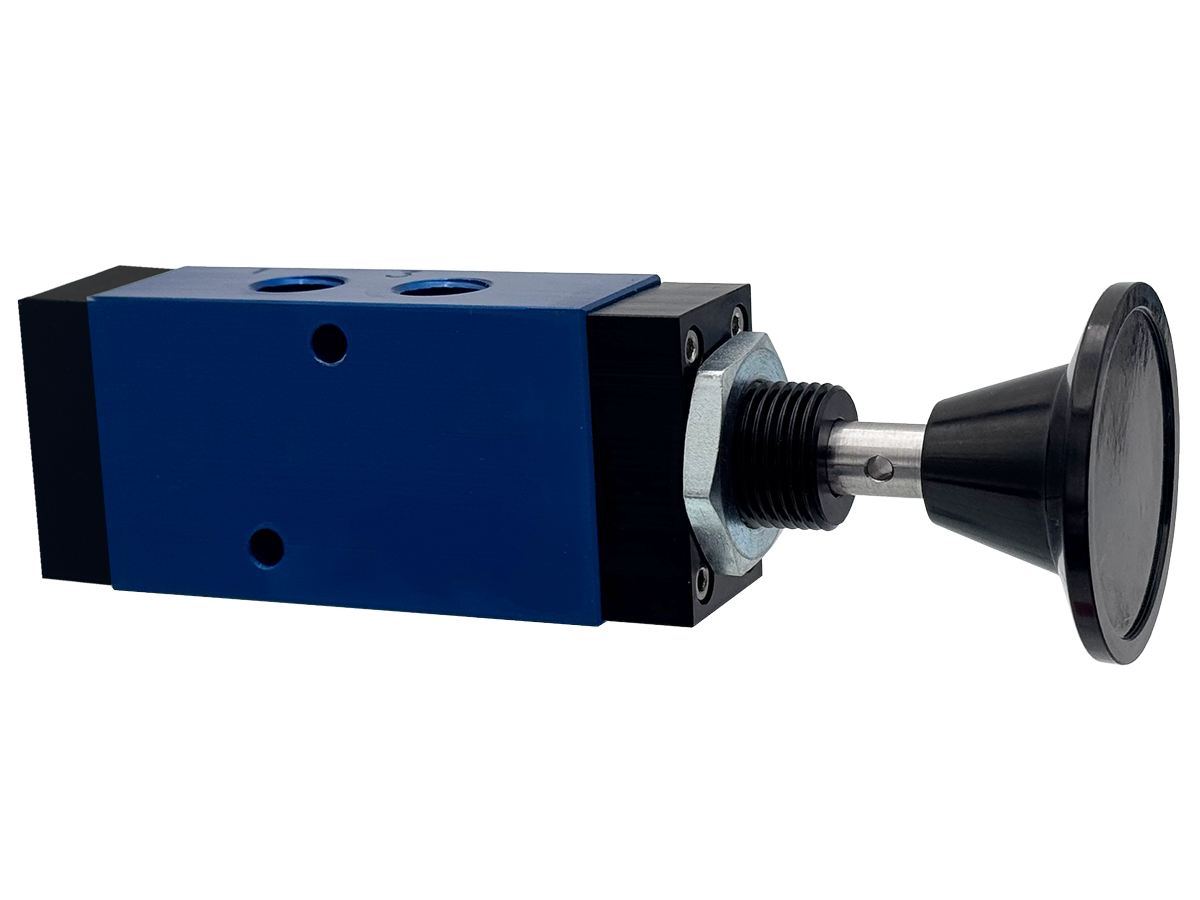

H20 3/2 Manual Control Valves - Air Pilot Reset H2004GBIMA-PW
- Balanced spool construction
- Compact size
- Low profile
- High performance
Product Information
| Function | 3/2 Double - Air Pilot Reset |
| Actuation | Manual Control - Push-Pull Knob |
| Default Position | Normally Closed |
| Construction Design | Balanced Spool |
| Mounting | Inline |
| Port Size | 3/8 |
| Port Thread | G |
| Ambient Temperature | -40° to 180°F (-40° to 82°C) |
| Media Temperature | -40° to 180°F (-40° to 82°C) |
| Media Temperature Caution | For temperatures below 32°F (0°C) air must be free of water vapor to prevent formation of ice. |
| Flow Media | Filtered Air |
| Valve Body Material | Anodized Bar Stock Aluminum |
| Valve Spool Material | Aluminum, Hardcoat/PTFE Anodized |
| Seal Material | Nitrile Rubber, Buna-N |
| Weight | 0.78 lb (0.354 kg) |
| Panel Nut Size | 3/4" |
| Operating Pressure | 0 to 150 psig (0 to 10.3 bar) |
| Port Protector | Included |
+
H20 3/2 Manual Control Valves - Air Pilot Reset
H2004GBIMA-PW
Contact Us for a 3D Model
+
H20 3/2 Manual Control Valves - Air Pilot Reset
H2004GBIMA-PW
Contact Automatic Valve for Ordering Information
+
