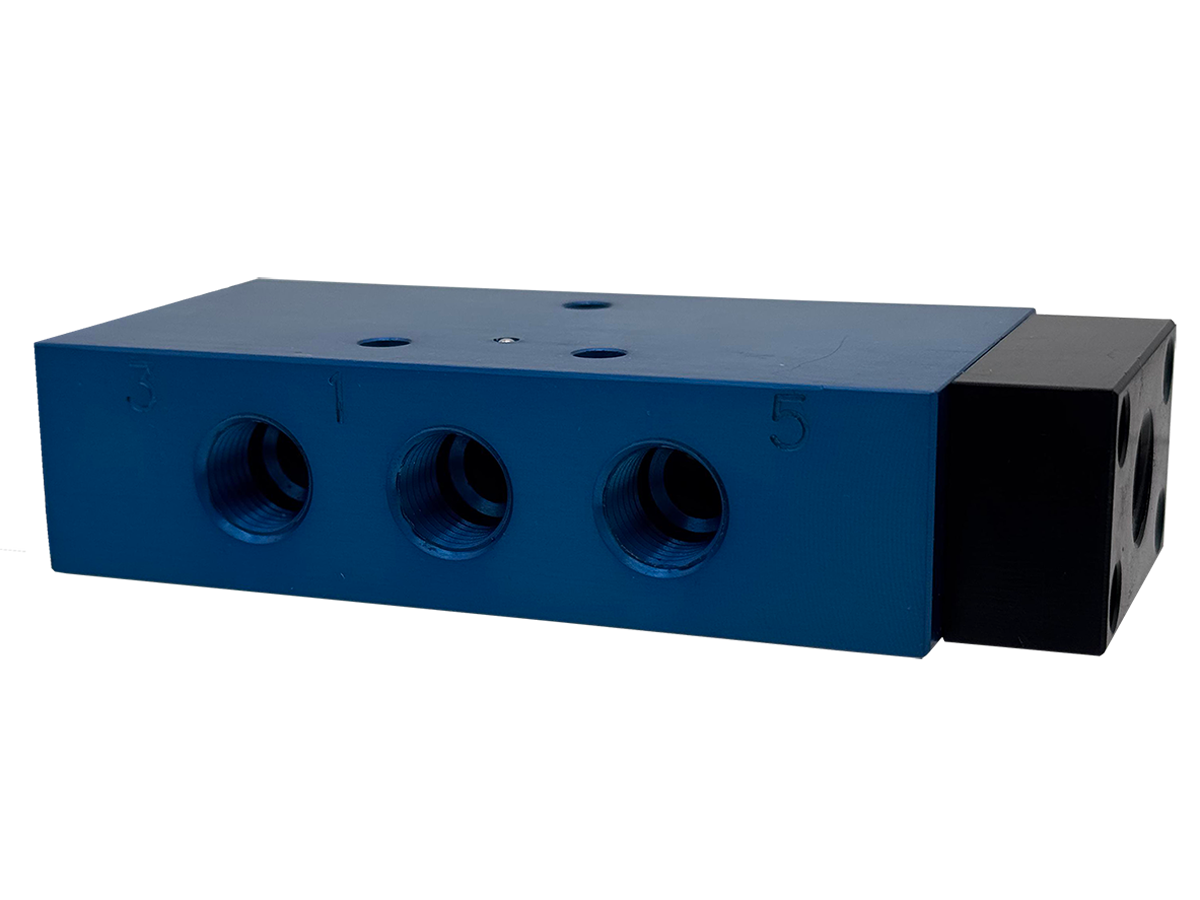

H20 5/2 Single Air Pilot Valves H2004AAAR-P
- Balanced spool construction
- Compact size
- Low profile
- High performance
H2004AAAR-P
$78.06
Quantity
Estimated Ship Date: 07/02/2026
*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.
Product Information
| Function | 5/2 Single Air Pilot |
| Default Position | Normally Closed |
| Construction Design | Balanced Spool |
| Mounting | Inline |
| Port Size | 3/8 |
| Port Thread | NPT |
| Pilot Port | 1/4" NPT |
| Ambient Temperature | -40° to 180°F (-40° to 82°C) |
| Media Temperature | -40° to 180°F (-40° to 82°C) |
| Media Temperature Caution | For temperatures below 32°F (0°C) air must be free of water vapor to prevent formation of ice. |
| Flow Media | Filtered Air |
| Valve Body Material | Anodized Bar Stock Aluminum |
| Valve Spool Material | Aluminum, Hardcoat/PTFE Anodized |
| Seal Material | Nitrile Rubber, Buna-N |
| Flow | 1.8 Cv (1800 Nl/min) |
| Operating Pressure | 0 to 150 psig (0 to 10.3 bar) |
| Weight | 0.78 lb (0.354 kg) |
| Pilot Supply Pressure | External, 35 to 150 psig (2.4 to 10.3 bar) |
| Port Protector | Included |
| Dual Pressure | With Single Pressure |
+
H20 5/2 Single Air Pilot Valves
H2004AAAR-P
Contact Us for a 3D Model
+
H20 5/2 Single Air Pilot Valves
H2004AAAR-P
Contact Automatic Valve for Ordering Information
+
