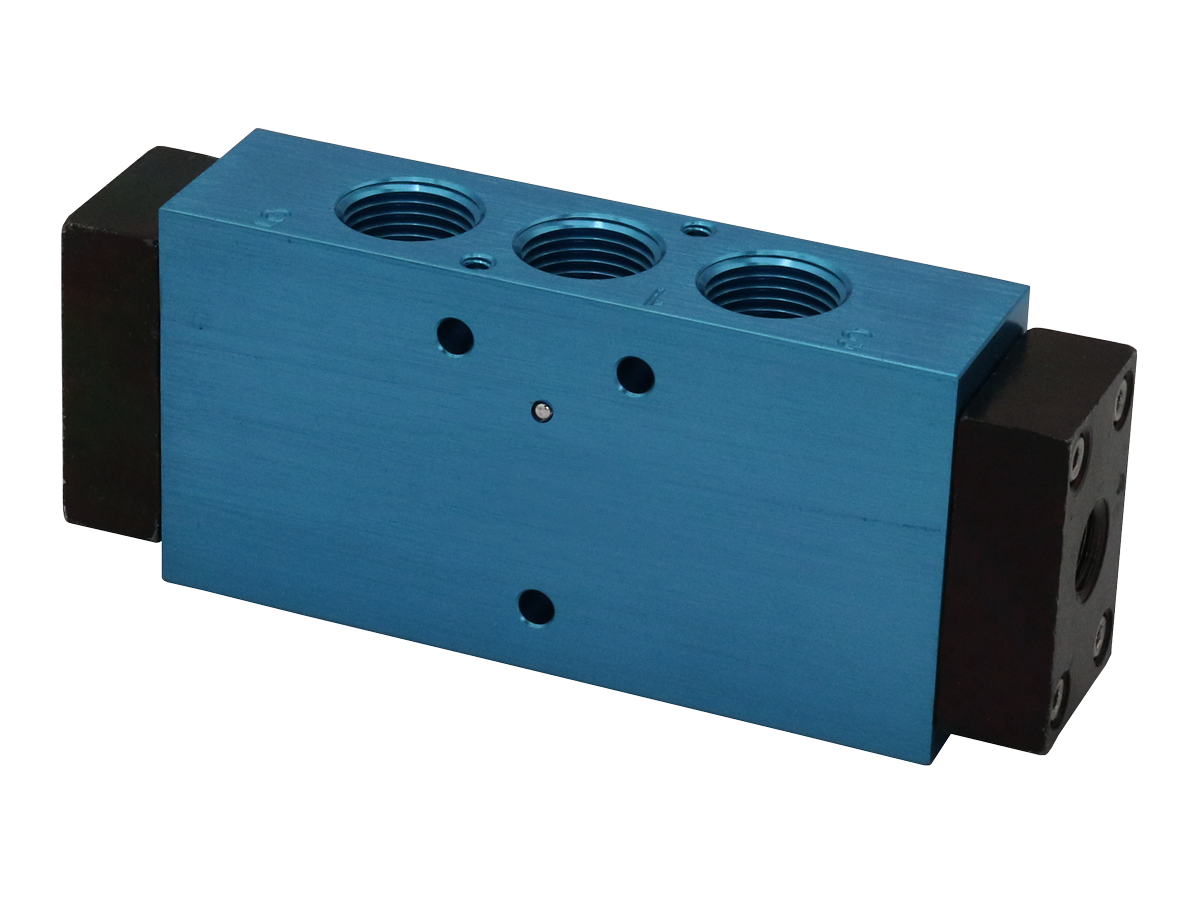

Compact Air Pilot L Series Valves - Standard Temperature L4505HAAR-W
- Compact Design - Balanced spool construction
- Tapered Tee-Seal - Bidirectional tapered Tee-Seal eliminates sticking problems
- Tested Tough - proven reliable according to SAE specifications: rust & water injected every 864,000 cycles for 20-million cycle
L4505HAAR-W
$174.25
Quantity
Estimated Ship Date: 02/25/2026
*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.
Product Information
| Valve Type | Directional Control |
| Series | L45 |
| Application | General Automation |
| Valve Function | 3/2-Way, Single Air Pilot |
| Default Position | Normally Open |
| Port Size | 1/2 |
| Port Thread | G |
| Body Material | Aluminum |
| Actuation | Pneumatic |
| Return | Spring |
| Construction | Spool |
| Mounting | Inline |
| Dustproof | Not Included |
| Ambient Temperature | 0 to 123 F (-18 to 50 C) |
| Media Temperature | 0 to 123 F (-18 to 50 C) |
| Flow Media | Filtered Air |
| Operating Pressure | 35 to 150 psig (2.4 to 10.3 bar) |
| Flow | 4.0 Cv (3940 Nl/min) |
| Weight | 1.9 lb (0.9 kg) |
| Length | 4.97 in (126 mm) |
| Height | 1.25 in (31.8 mm) |
| Width | 2.5 in (63.5 mm) |
| Seal Material | Buna-N |
| Spool Material | Aluminum |
+
Compact Air Pilot L Series Valves - Standard Temperature
L4505HAAR-W
Contact Us for a 3D Model
+
Compact Air Pilot L Series Valves - Standard Temperature
L4505HAAR-W
Contact Automatic Valve for Ordering Information
+
