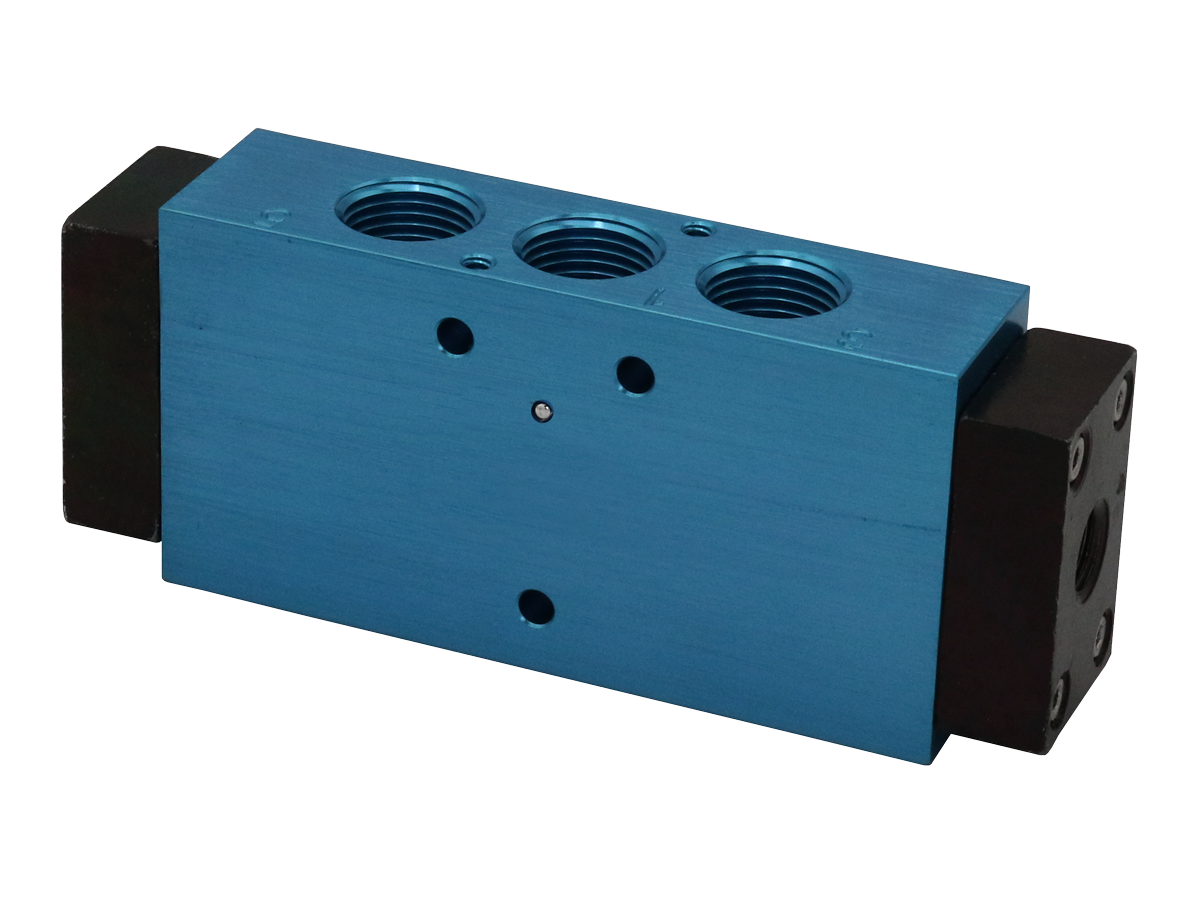

Compact Air Pilot L Series Valves - Standard Temperature L2103AAAR
- Compact Design - Balanced spool construction
- Tapered Tee-Seal - Bidirectional tapered Tee-Seal eliminates sticking problems
- Tested Tough - proven reliable according to SAE specifications: rust & water injected every 864,000 cycles for 20-million cycle
L2103AAAR
$73.00
Quantity
Estimated Ship Date: 07/24/2025
*Estimated Ship Date based on standard manufacturing times for quantities of 10 or less. Shipments will be made anywhere in the United States.
Product Information
| Valve Type | Directional Control |
| Series | L21 |
| Application | General Automation |
| Valve Function | 5/2-Way, Single Air Pilot |
| Port Size | 1/4 |
| Port Thread | NPT |
| Body Material | Aluminum |
| Actuation | Pneumatic |
| Return | Spring |
| Construction | Spool |
| Mounting | Inline/Manifold (Top) |
| Dustproof | Not Included |
| Ambient Temperature | -20 to 123 F (-29 to 50 C) |
| Media Temperature | -20 to 123 F (-29 to 50 C) |
| Flow Media | Filtered Air |
| Operating Pressure | 35 to 150 psig (2.4 to 10.3 bar) |
| Flow | 1.4 Cv (1400 Nl/min) |
| Weight | 1.1 lb (0.5 kg) |
| Length | 4.31 in (109.5 mm) |
| Height | 1.25 in (31.8 mm) |
| Width | 2.0 in (50.8 mm) |
| Seal Material | Buna-N |
| Spool Material | Aluminum |
+
Compact Air Pilot L Series Valves - Standard Temperature
L2103AAAR
